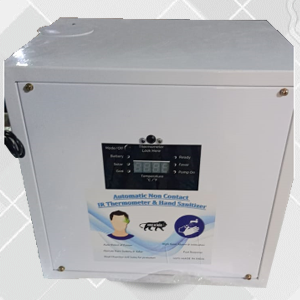

Automatic Temperature And Sanitizing Sysytem

In the time of COVIDI9, world has to live with it. But at places where peoples movement, it is important to monitor first level & sanitize them at minimum required level before entering area concerned It is a touch free system, can be powered from Grid with a battery backup. In case grid power availability is poor in day time Solar panel can be connected to operate it 24x7.

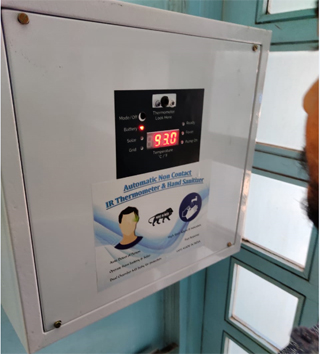

Whenever any person comes in its sensing range temperature meter will be activated & its body temperature will be displayed with an audio indication In case it has fever, an audio alarm & visual indication will come up. All sensors are based on infrared radiation for measurements which are having effects of SUN radiation at day time.

We have added many complex protocols / Computations to filter Sun radiation effects. Bid then also it is advised to use/ install it in shadow area where direct sunlight or directly reflected light are less.

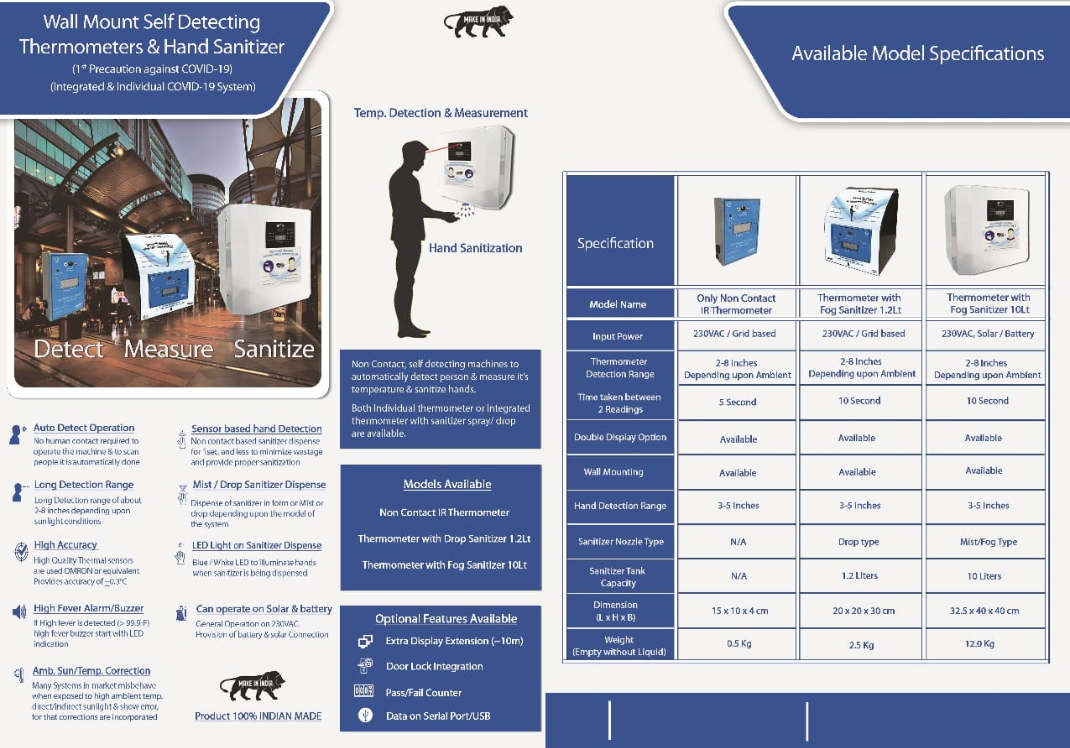

Tech Details

Power
Grid Operating Voltage 230 V AC +/- 15%
Solar Panel Power 50 Watts / 22 Volts
Battery 12V / 7Ah Lead Acid
Idle Power Consumption 2 Watts
Moter Operating Voltage 24 V
Temperature
Activation Range 20 cm
Temperature Range 95 - 105°F / 30 - 42°C
Display Time 22 Sec
Lower Fever Detection >99.6°F
Higher Fever Detection > 102.5°F
Sanitizer
Capacity 10 Ltr.
Pump ON time 4 Sec
Sensor Range 20 cm
LED Indication Yes (when turned ON)
Display / Indication
Display Type 16X2 LCD Alphanumeric
Information on the Display Temp in °C / °F
Information on the Display Pass / Fail Count
LED Battery Power
