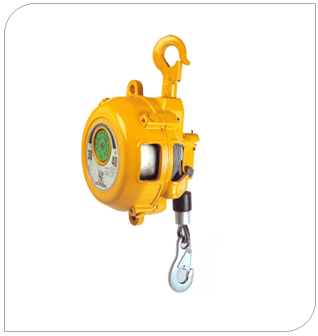

Aluminium Die Casting Series SP SB 40 - 85

Aluminium Die Casting Series SP SB 40 - 85
MODEL NO
CAPACITY
(kgs)
CABLE TRAVEL
(mtrs)
MASS
(kgs)
SPSB-40
30.0-40.0
1.7
10.0
SPSB-50
40.0-50.0
1.7
11.0
SPSB-60
50.0-60.0
1.7
12.0
SPSB-70
60.0-70.0
1.7
12.0
SPSB-85
70.0-85.0
1.5
13.0
--------------------------------------------------------------------------------------------------------------------------------------------------------
Aluminium Die Casting Series SP SB 40 - 85

MODELS
GENERAL TOOLS USED
AREA OF USE IN SHOP FLOOR
MAKE OF TOOLS NORMALLY USED
SPSB - 40
SPSB - 50
SPSB - 60
SPSB - 70
PORTABLE SPOT (WELDERS)
HYDRAULIC TOOLS
HYDRAULIC RIVETERS
NUMBER PUNCHING
MACHINES NUT RUNNERS
BODY SHOP
(WELD)
CHASIS ASSLY
NASH M/C's, JAIHIND
SCIAKY, MECHELONIC
CHICAGO PNEUMATIC DESOUTTER, DAI, ICHI

MODEL NO.
PARTS OF SPRING BALANCER
RAW MATERIAL SPECIFICATION
DETAILED PROCESS OF MANUFACTURE

SPSB-40
SPSB-50
SPSB-60

SPSB-70

BODY
BODY COVER
PULLEY
BACK COVER
SPRING
CASING



LM-6
GRADE SAND CAST
DIE CAST

EDD QUALITY
STEEL SHEET

Sand Cast of high quality aluminium, duly machined to maintain dimensional accuracy. Drilling, Tapping, Powder Coating for improved finish.
Outer Cutting, Deep Drawing, Piercing, Bending Fabrication.


     Mass . Kg : 4.5 to 9 - 4.0 Kg
                  9.0 to 15.0 - 4.0 Kg
                15.0 to 22.0 - 8.0 Kg
