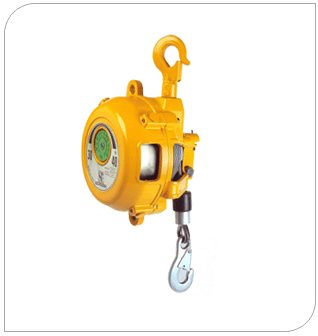

Aluminium Die Casting Series SP SB 15 - 22

Aluminium Die Casting Series SP SB 15 - 22

MODEL NO

CAPACITY
(kgs)
CABLE TRAVEL
(mtrs)
DIAMETER OF CABLE
(mm)
MASS
(kgs)
SPSB-22
15.0-22.0
1.5
4.76
7.2
--------------------------------------------------------------------------------------------------------------------------------------------------------
Aluminium Die Casting Series SP SB 15 - 22

MODELS
GENERAL TOOLS USED
AREA OF USE IN SHOP FLOOR
MAKE OF TOOLS NORMALLY USED
SPSB - 22


IMPACT WRENCHES
SMALL PORTABLE
SPOT WELDERS, RIVETERS
ANGLE GRIENDERS
BODY SHOP OF CARS
FABRICATION SHOPS
CHASIS ASSLY OF CARS, TRUCKS, JEEPS
WADCO, IEC, NASH M/C
CHICAGO PNEUMATIC
RALLIWOLF, BLACK & DECKER, HITACHI.

MODEL NO.
PARTS OF SPRING BALANCER
RAW MATERIAL SPECIFICATION
DETAILED PROCESS OF MANUFACTURE

SPSB-22

SPRING CASING


WORM & WORM
GEAR

BEARINGS

TOP & BOTTOM HOOKS



SPIRAL SPRING

EDD QUALITY STEEL SHEET


20 MnCr 5 Material

6004 ZZ
Nachi / SKF

EN-8 DROP
FORGED

EN-42J, IS 4454 GRADE II SPRING STEEL

Outer Cutting, Deep Drawing, Punching,Bending, Piercing & fabrication.

Turning, Gear Hobbing, milling,Hardening Grinding.

Standard Bought Out item.

Heading, Drawing, Bending, Drop Forging, Trimining. Machining, Shot Blasting, Buffing Electro plating.

Sitting, Bending, Colling
